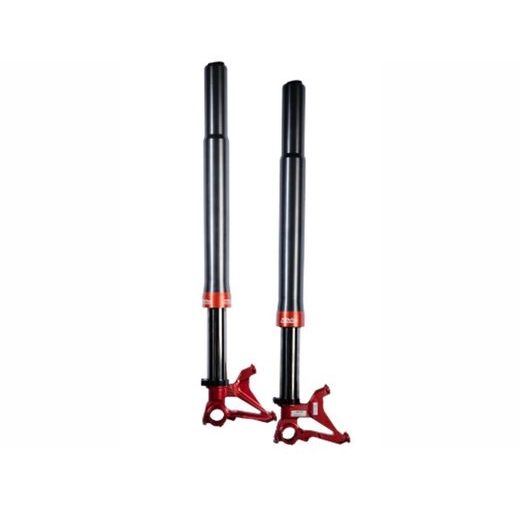

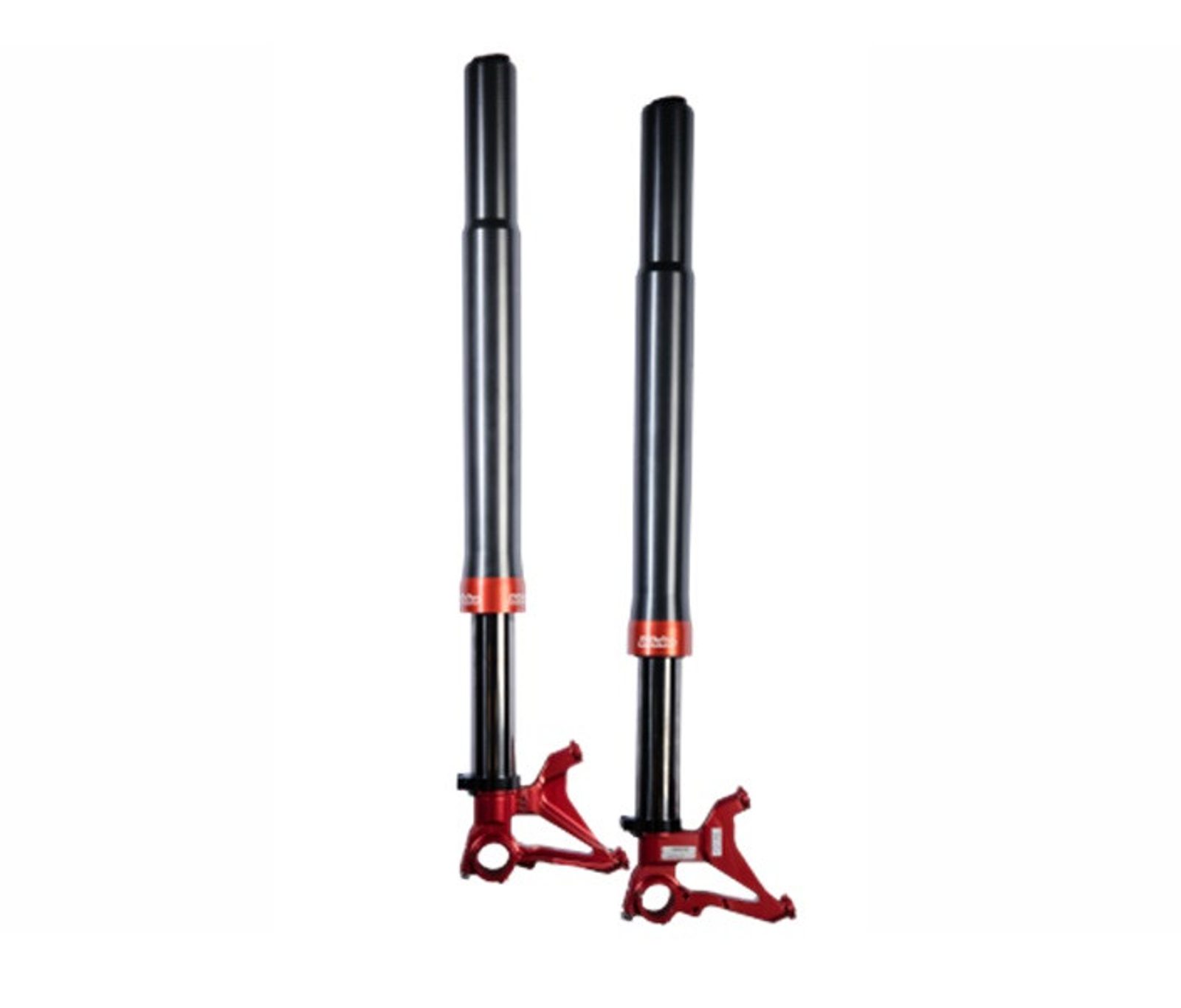

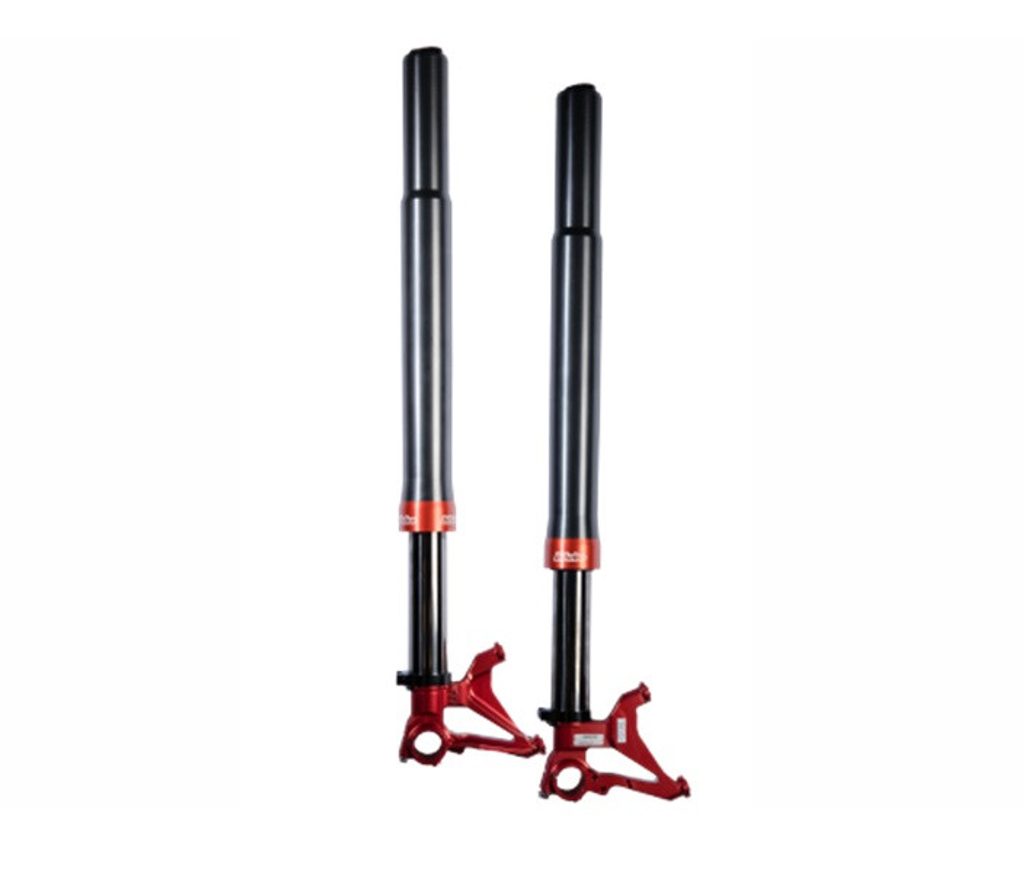

Priekinė šakė BITUBO RRH04 SBK and MOTO2

RRH makes obsolete the old technology that uses external compensating trays, controls at the bottom, complex and delicate hydraulic systems, concentrating the controls at the top for faster intervention, lightening the unsprung masses and with them the total weight. The small height of the foot reduces the forces discharged on the stem for better smoothness

OBJECTIVE

+ PRECISION OF DRIVING: the greater rigidity and smoothness of the structure offers greater feeling to the rider in braking

+ STABILITY: front-end, perfect control of the descent even in the violent braking sections

+ GRIP: immediate hydraulic control

+ UNIFORM: tyre wear

= MAXIMUM SPEED: travelling on a curve

TECHNICAL CHARACTERISTICS

LC= Light Components

FPS = Full Pressure System

EC = Easy Changer

SBK FORK

Sheaths: 52/58 mm

Length 740 mm

Weight 8.200 gr

MOTO2 FORK

Sheaths: 51/56 mm

Length 740 mm

Weight 7.720 gr

ADJUSTMENTS:

• Spring preload 15mm = 15 turns

• Compression (24 clicks)

• Extension (24 clicks)

INCLUDED IN THE BOX:

The package includes 2 more spare springs with different stiffness rates for the different set-ups, in order to get the best control of the highest performance levels.
